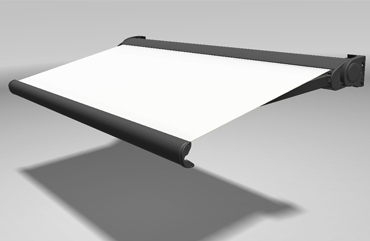

Folding arm awning MILANO

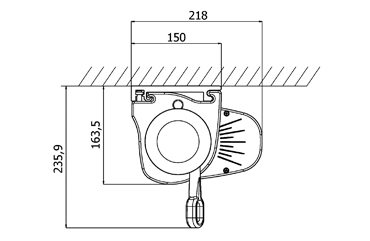

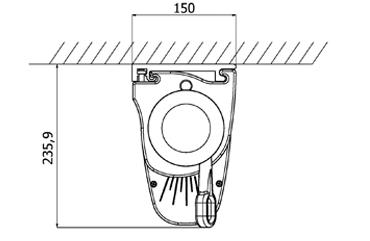

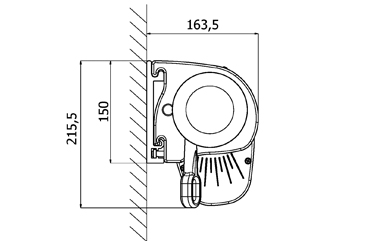

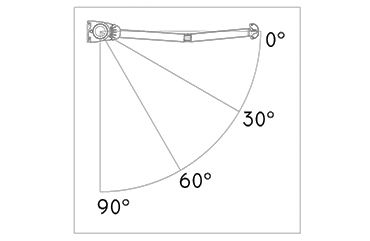

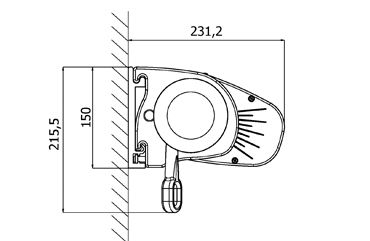

The awning with extensible arms MILANO is realized with box at total rollaway mounted with side supports fixed, anchor counter plate and millimetric adjustment. The installation can be done on either the wall or ceiling, in both cases, if with gearbox control you can have an inclination from 0° to 90°, whereas if realized with engine with emergency override the maximum inclination obtainable is of 25-30 °. Supplied with roller tube diam. 70 mm up to width 400 cm, for greater widths provided with the roller tube diameter. 78 mm.

Maximum size recommended:

Width cm 400
Projection cm 260
According to EN 13561: 2004 Class 2 (cm400x260) Class 1 (cm500x260)
Nominal test pressure 70N / m² (cm400x260) 40N / m² (cm500x260)
According to the proposed amendment of section 4.4 of the norm
EN 13561: 2004 Class 3 (cm400x260) Class 2 (cm500x260)
Dynamic pressure 110N / m² (cm400x260) 70N / m² (cm500x260)
