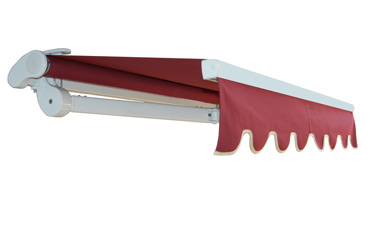

Folding arm awning BQC LUX

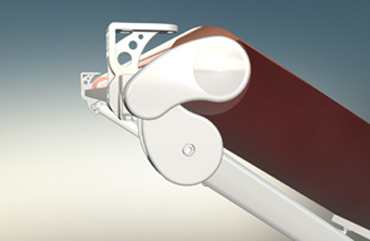

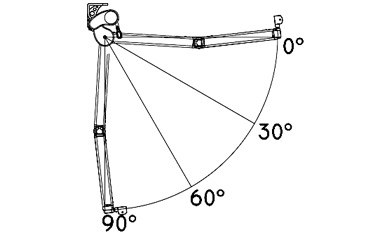

The awning with extensible arms BQC LUX is realized on square bar 40x40 in galvanized and painted steel with arms with chain and supports with innovative design at adjustment conical. The tilt adjustment happens in a continuous way. It has like optional a protective roof in aluminium.
Maximum size recommended:
Width cm 500
Projection cm 310
Class 1 according to EN 13561:2004
Nominal test pressure p(N/m² ) 40
Class 2 according to the proposed amendment of section 4.4 of EN 13561: 2004
Dynamic pressure q(N/m² ) 70
You can see the video or download the pdf only if you are a registered user.
