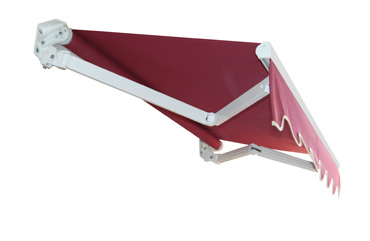

Folding arm awning LIBERTY

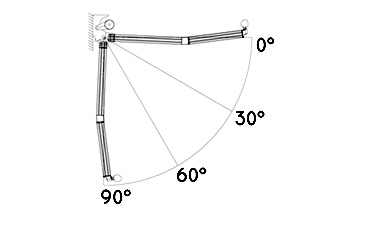

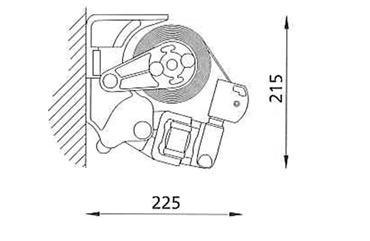

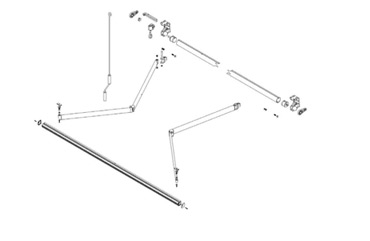

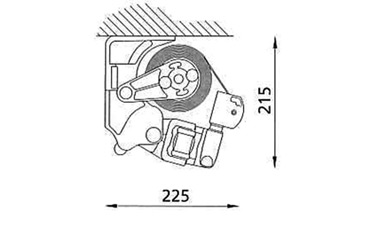

The awning with extensible arms LIBERTY is realized on side brackets independent fixed with lever interlocking adjustment. Supplied with roller tube diam. 70 mm, it has like optional a protective roof in aluminium.
Maximum size recommended:
Width cm 500
Projection cm 260
According to EN 13561: 2004 Class 2 (cm500x235) Class 1 (cm500x260)
Nominal test pressure 70N / m² (cm500x235) 40N / m² (cm500x260)
According to the proposed amendment of section 4.4 of the norm
EN 13561: 2004 Class 3 (cm500x235) Class 2 (cm500x260)
Dynamic pressure 110N / m² (cm500x235) 70N / m² (cm500x260)
