Folding arm awning COMPACT BOX B/Q

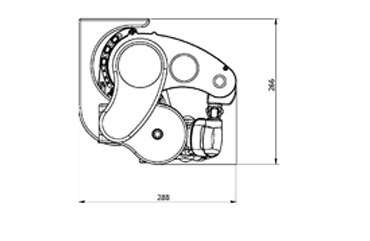

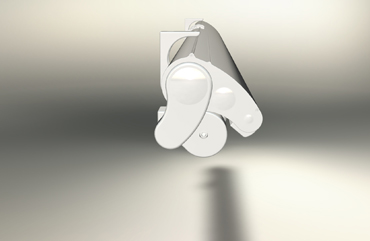

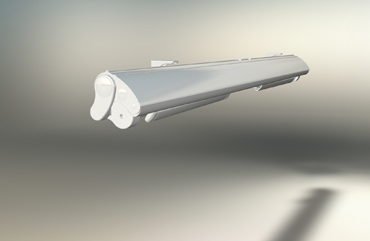

The awning with extensible arms COMPACT BOX B/Q is realized with box at partial rollaway mounted on square bar 40x40. The installation can be done either on the wall or on ceiling, in both cases, if with gearbox control you can have a maximum inclination of 30 °. If realized with engine with emergency override the maximum inclination obtainable is of 25-30 °.
Maximum size recommended:
Width cm 500
Projection cm 260
According to EN 13561: 2004 Class 2 (cm400x260) Class 1 (cm500x260)
Nominal test pressure 70N / m² (cm400x260) 40N / m² (cm500x260)
According to the proposed amendment of section 4.4 of the norm
EN 13561: 2004 Class 3 (cm400x260) Class 2 (cm500x260)
Dynamic pressure 110N / m² (cm400x260) 70N / m² (cm500x260)
