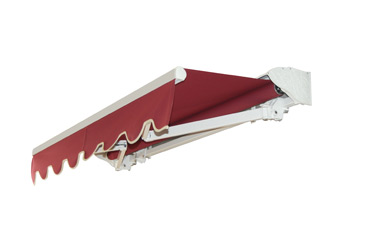

Folding arm awning KIRO 40 B/Q

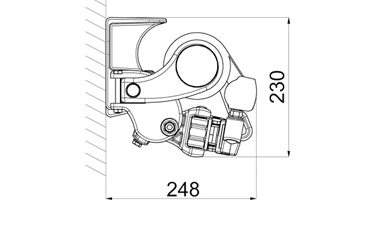

The awning with extensible arms KIRO 40 B/Q is realized on square bar 40x40 in galvanized and painted steel. It has arms supports with lever interlocking in aluminium casting. The front is interchangeable with other terminal profiles. Supplied with roller tube diam. 70 mm, it has like optional a protective roof in aluminium.
Maximum size recommended:
Width cm 600
Projection cm 310
According to EN 13561: 2004 Class 2 (cm500x235) Class 1 (cm600x310)
Nominal test pressure 70N / m² (cm500x235) 40N / m² (cm600x310)
According to the proposed amendment of section 4.4 of the norm
EN 13561: 2004 Class 3 (cm500x235) Class 2 (cm600x310)
Dynamic pressure 110N / m² (cm500x235) 70N / m² (cm600x310)
